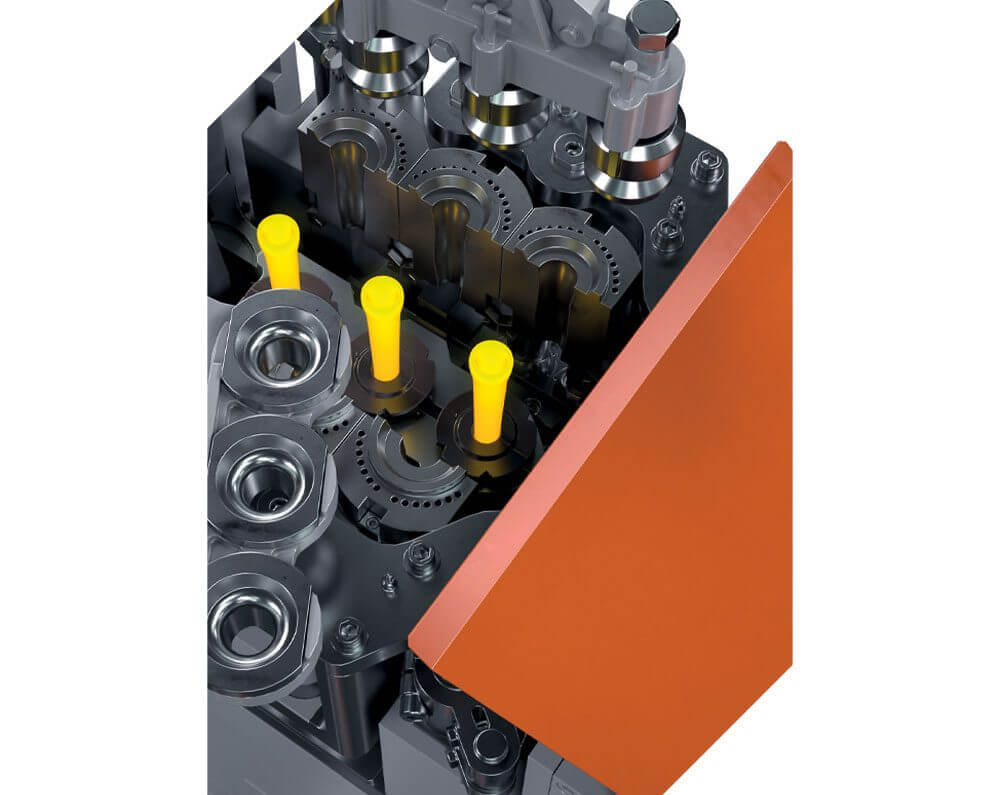

IS Angular Cooling System on IS DG 5″ 1⁄2 – IS DG 6″ 1⁄4 TG 4″ 1⁄4
Improved cooling efficiency and thermal homogeneity maintaining standard moulds and equipment:
• Use of standard moulds designed for stack-cooling (radial)
• Use of standard mould holders, arms, plates or inserts
• Dual on-off valve for blank cooling and neck-ring cooling (blank side)
• Neck-ring cooling design with standard nozzles and spacers (blank side)
• Telescopic tube with quick self centering clamping system
Blank and blow bidirectional Axial Cooling
• Dedicated plenum chamber shaped according mould’s diameter and height
• Two separated cooling air flows (upwards and downwards) with independent air volume optimization
• Available for blank and blow side
Down-Up Blank Axial Cooling
• Dedicated plenum chamber shaped according mould’s diameter and height
• One cooling air flow direction: from bottom to top
