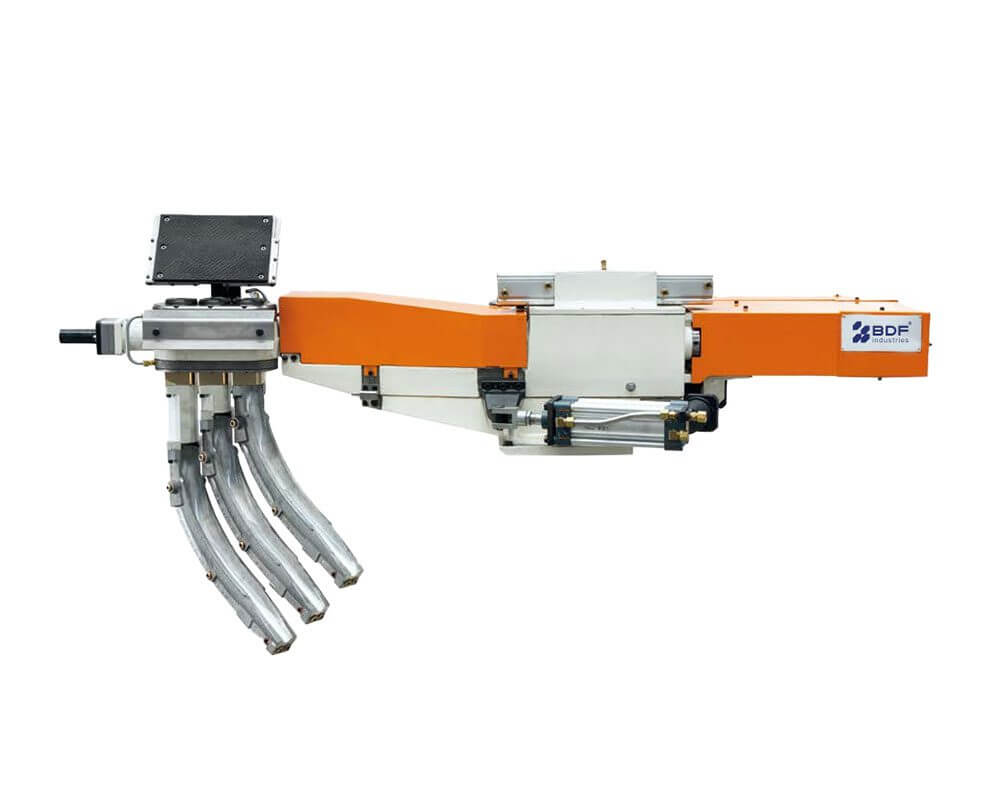

SGD 330
For a fast and precise gob delivery
Main Data
• Max. Speed = 220 cuts/min
• Min. motion time = 120 msec
• Max. jump = 40° (at max speed)
Benefit
• No belt transmission
• Adjustable mechanical end-strokes
• Automatic scoops central positioning
• High rigidity and low inertia
• Very low vibrations at high speed
• High reliability
• Direct drive systems with planetary gearbox and ceramic ball screw
Technical Features
• Interchangeable with the previous version
• Motion control with electronic cams
• Controlled by integrated or stand-alone system
• Interface with any type of machine
• Programming of the data by operator’s computer or hand-terminal
• Easy and efficient trouble diagnostic
• 22° rotating in stand-by position
Mechanism Description
• Motion control with standard brushless motor
• Coaxial epicyclic reduction gear
• Use of a ball screw for the linear motion of the scoops rack
• Double linear guides (rollers and bushings)
• Double pneumatic cylinders for the emergency central positioning
• Ball screw and guides in oil
• Proximity switch for the control of the working position
• Motor cooling with fan air
• Shock absorber for the inlet motion
• Emergency position for safety
