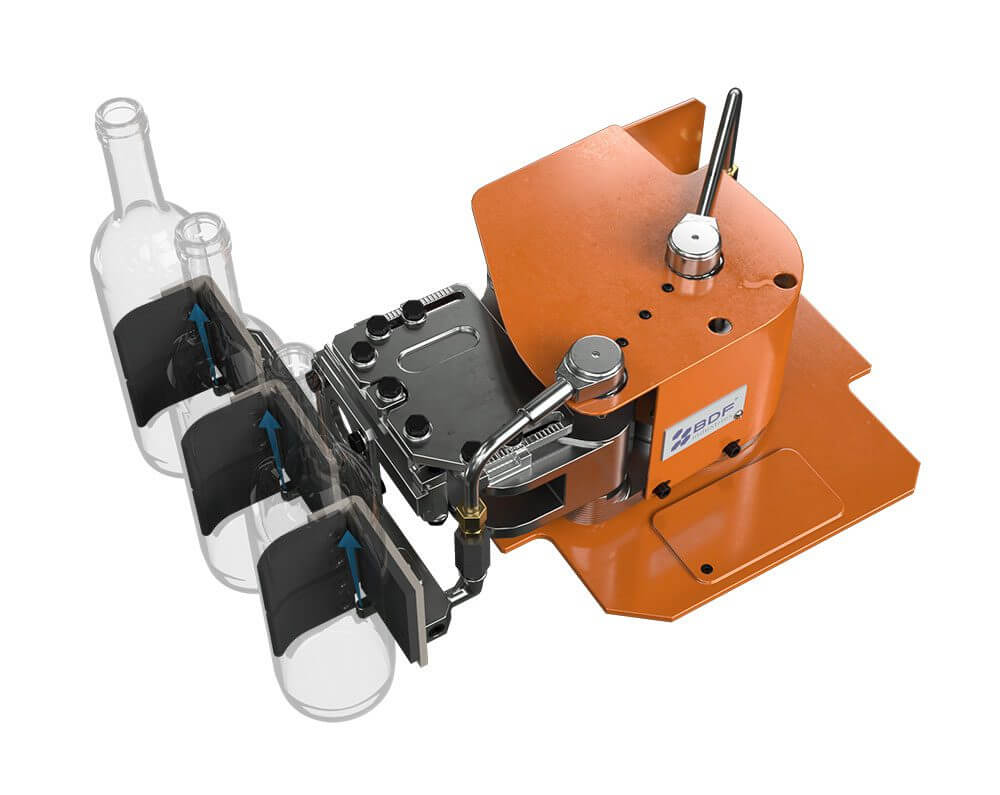

AP Pusher Air jet System

to move bottles from the IS Machine to the Conveyor

Technical sheet

Main data

Max conveyor speed = 65 m/s
Use the venturi effect
Indipendent and easily accessible air flow adjustments for each cavity positioned upon the finger
Finger suction with regulated compressed air (4.5bar)
Available for bdf AP pusher mechanism in DG-TG-QG

Benefits

Increased bottle stability for high speed conveyor
Minimize harmful air flow to keep the bottle temperature under control

Venturi effect

The Venturi effect states that in a situation with a constricted section of a duct the pressure of the fluid reduces. The air duct consists in the residual space between the pusher finger and bottle. When an high speed air flow go through in this space, a depression happen in relation to the outside normal pressure. In this way, the atmospheric pressure will push the bottle against the pusher finger.
